| Model No. | LG05M-06 | LG05M-12 | LG05M-15 | LG05M-18 |
| Dimensions(mm) | 600*72*72.5 | 1200*72*72.5 | 1500*72*72.5 | 1800*72*72.5 |
| Power | 20W | 20/40W | 30/50/60W | 40/67W |
| Voltage | AC220-240V | |||
| CCT | 2700K/3000K/4000K/5000K/6500K | |||
| Luminous Efficiency | 100/120lm/W | |||
| Luminous Flux 100 | 2000lm | 4000lm | 5000/6000lm | / |
| Luminous Flux 120 | 2400lm | 4800lm | 3600/7200lm | 4800/8040lm |
| DF | >0.9 | |||
| CRI | >80 | |||
| Beam Angle | 120° | |||
| IP Grade Protection | IP20 | |||
![]() |

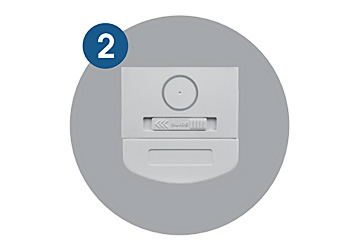

Easy open by slide switch | ![]() |

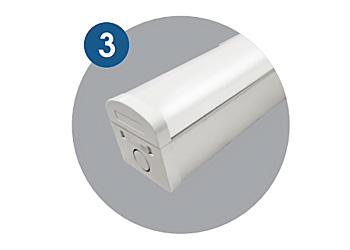

Cable entry in the middle and both ends |
![]() |
Slim body, easy to carry | ![]() |

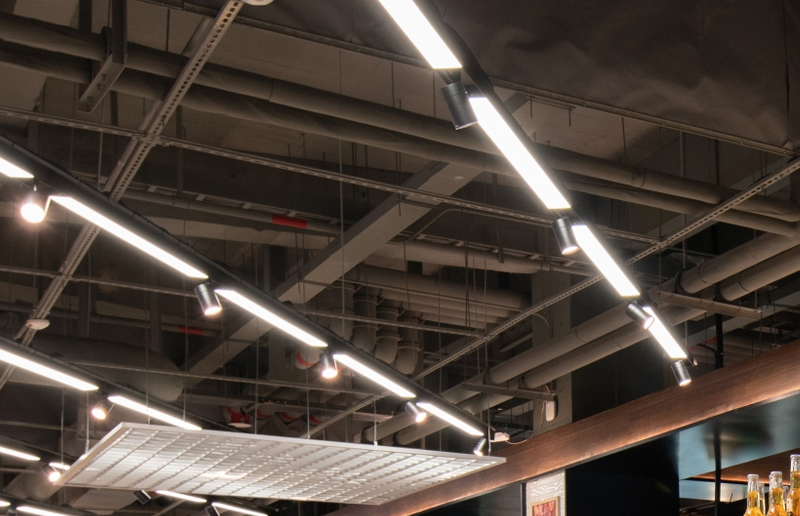

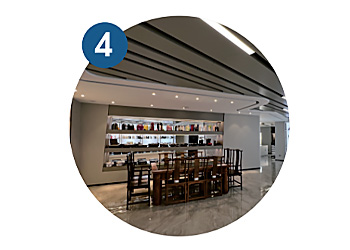

Widely used in different situations |
