| Model No. | LG06G-06S | LG06G-12S | LG06G- 15S | LG06G-06 | LG06G-12 | LG06G-15 |
| Dimensions(mm) | 684*64*56.8 | 1290*64*56.8 | 1590*64*56.8 | 684*101*56.8 | 1290*101*56.8 | 1590*101*56.8 |
| Power | 1X9W | 1X18W | 1X24W | 2X9W | 2X18W | 2X24W |
| Voltage | AC220-240V | |||||
| CCT | 2700K/3000/4000/5000K/6500K | |||||
| Luminous Efficiency | 105lm/W-LED TUBE | |||||
| Luminous Flux 105 | 945Im | 1890lm | 3780lm | 1890lm | 3780lm | 5040lm |
| DF | >0.7/>0.9 | |||||
| CRI | >80 | |||||
| Beam Angle | 120° | |||||
| IP Grade Protection | lp65 | |||||
![]() |

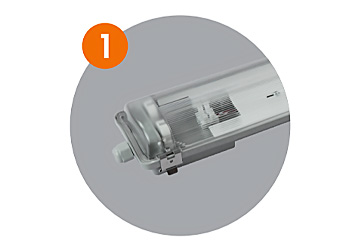

Without led tube | ![]() |

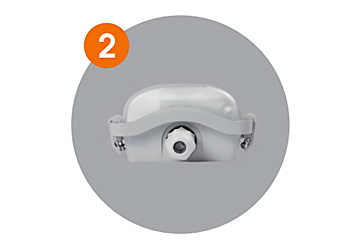

PC clips and SS clips are optional |
![]() |

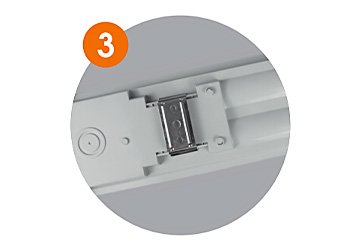

Easy installation | ![]() |

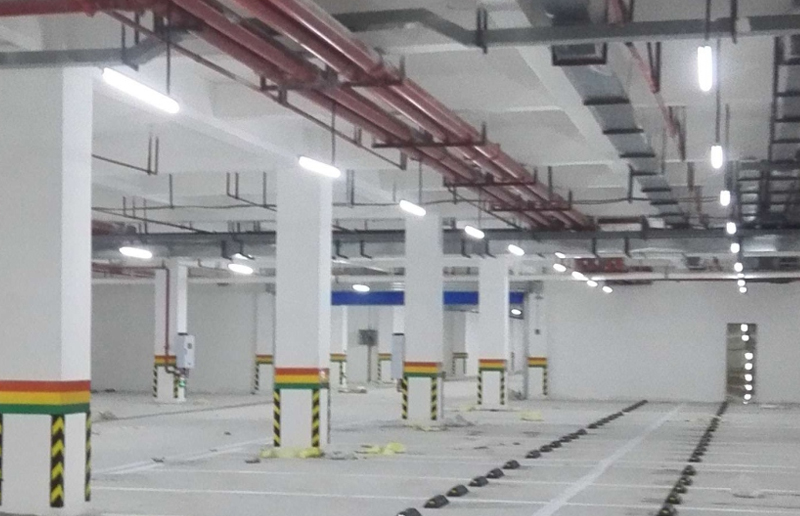

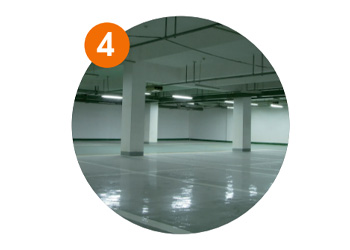

Widely used in different situations |
