Model No. | LG06D-06S | LG06D-12S | LG06D-15S | LG06D-06 | LG06D-12 | LG06D-15 |
Dimensions(mm) | 680*66.5*63 | 1285*66.5*63 | 1585*66.5*63 | 680*66.5*63 | 1285*66.5*63 | 1585*66.5*63 |
Power | 1X9W | 1X18W | 1X24W | 2X9W | 2X18W | 2X24W |
Voltage | AC220-240V | |||||
CCT | 2700K/3000/4000/5000K/6500K | |||||
Luminous Efficiency | 105lm/W-LED TUBE | |||||
Luminous Flux 105 | 945lm | 1890lm | 3780lm | 1890lm | 3780lm | 5040lm |
DF | >0.7/>0.9 | |||||
CRI | >80 | |||||
Beam Angle | 120° | |||||
IP Grade Protection | lp65 |
![]() |

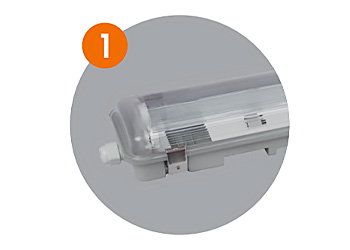

Without led tube | ![]() |
clips design |
![]() |

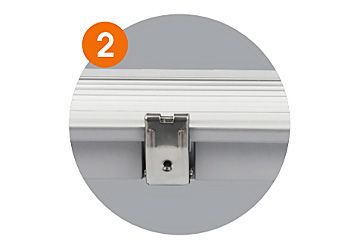

Locking clips version | ![]() |

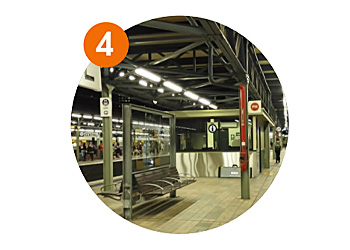

Widely used in different situations |
As the mainstream indoor lighting equipment in contemporary times, LED ceiling lamps are widely used in residential, off...
As an important product of modern indoor lighting, LED ceiling lamps are widely used in residential, office buildings, c...
In modern lighting technology, LEDs (light-emitting diodes) are widely used due to their high efficiency and long life. ...
Overcurrent shockOvercurrent shock is the main factor leading to the failure of light source components, which can usual...
The core mechanism of LED Batten Fitting to achieve energy saving of more than 50% through high light efficiency design ...
