| Model No. | LG06J-06S | LG06J-06 | LG06J-12S | LG06J-12 | LG06J-15S | LG06J-15 |
| Dimensions(mm) | 540*60*58 | 540*78*58 | 1140*60*58 | 1140*78*58 | 1440*60*58 | 1440*78*58 |
| Power | 9/18W | 18W | 18/36W | 36W | 24/48W | 48W |
| Voltage | AC220-240V | |||||
| CCT | 2700K/3000/4000/5000K/6500K | |||||
| Luminous Efficiency | 100/110lm/W | |||||
| Luminous Flux 100 | 900/1800lm | 1800lm | 1800/3600lm | 3600lm | 2400/4800Im | 4800lm |
| Luminous Flux 110 | 990/1980lm | 1980lm | 1980/3960lm | 3960lm | 3960/5280lm | 5280lm |
| DF | >0.7/>09 | |||||
| CRI | >80 | |||||
| Beam Angle | 120° | |||||
| IP Grade Protection | lp65 | |||||
![]() |

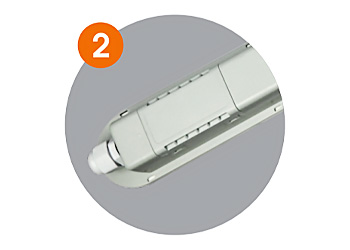

Slim body | ![]() |
Back-side open cap |
![]() |

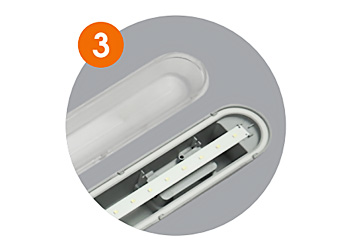

Easy to change the light source | ![]() |

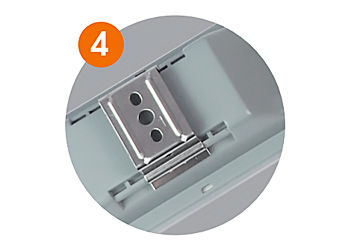

New construction, the PCB attached to the cover, easy to install, and the wiring for the external |
