| Model No. | LG07L-06 | LG07-12 | LG07L-15 | LG07L-18 |
| Dimensions(mm) | 600*96*83 | 1200*96*83 | 1500*96*83 | 1800*96*83 |
| Power | 9/18W | 21/39W | 30/55W | 34/70W |
| Voltage | AC220-240V | |||
| CCT | 2700K/3000/4000/5000K/6500K | |||
| Luminous Efficiency | 120/150lm/W | |||
| Luminous Flux 120 | 1080/2160lm | 2520/4680lm | 3600/6600lm | 4080/8400lm |
| Luminous Flux 150 | 1350/2700lm | 3000/6000lm | 3750/7500lm | 5100/10500lm |
| DF | >0.9 | |||
| CRI | >80 | |||
| Beam Angle | 120° | |||
| IP Grade Protection | IP65/IP66 | |||
![]() |
New construction, the PCB attached to the cover, easy to install, and the wiring for the external | ![]() |

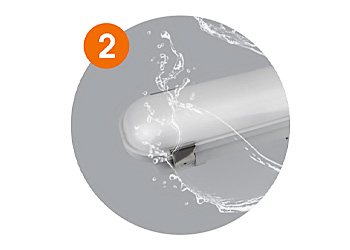

Metal locking clips version, IP65 |
![]() |

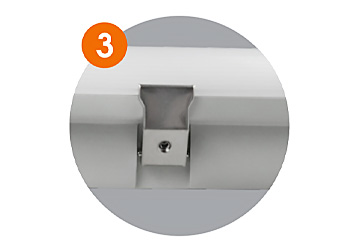

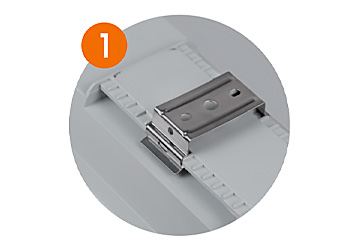

Clips design | ![]() |

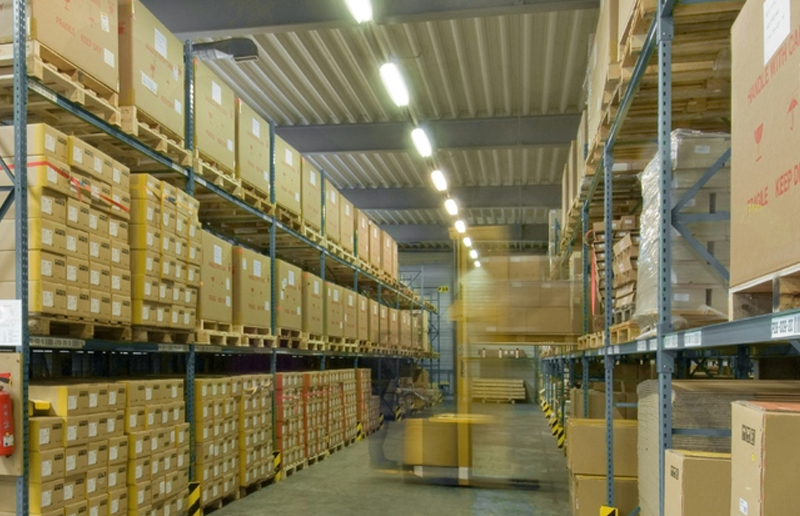

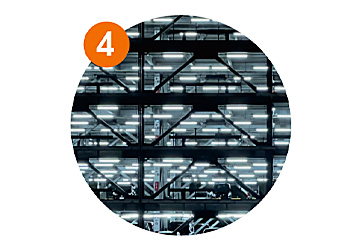

Widely used in different situations |
