| Model No. | LG03A-0606-36 | LG03A-1203-36 | LG03A-1206-45 | LG03A-0606-36-UGR | LG03A-1203-36-UGR | LG03A-1206-45-UGR |
| Dimensions(mm) | 595*595*35 | 1195*595*35 | 1195*295*35 | 595*595*35 | 1195*595*35 | 1195*595*35 |
| Power | 36W | 36W | 45W | 36W | 36W | 45W |
| Voltage | AC220-240V | |||||
| CCT | 2700K/3000K/4000K/5000K/6500K | |||||
| Luminous Efficiency | 100/120/140lm/W | |||||
| Luminous Flux 100 | 3600Im | 3600lm | 4500Im | 3600Im | 3600Im | 4500Im |
| Luminous Flux 120 | 4320lm | 4320Im | 5400lm | 4320Im | 4320lm | 5400Im |
| Luminous Flux 140 | 5040Im | 5040lm | 6300Im | 5040lm | 5040Im | 6300Im |
| PF | >0.9 | |||||
| CRI | >80 | |||||
| Beam Angle | 120° | 120° | 120° | 80° | 80° | 80° |
| IP Grade Protection | IP20 | |||||
| URG | <22 | <22 | <22 | <19 | <19 | |
| BS2782(UK) | TPA/TPB | |||||
![]() |

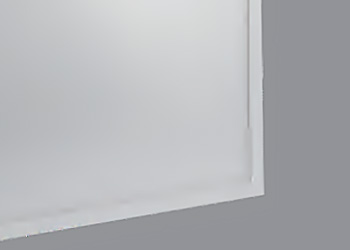

Widely-accepted design for decoration |
![]() |

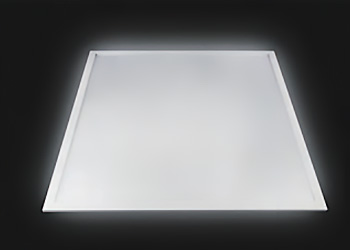

Uniform and beautiful light emission |
![]() |

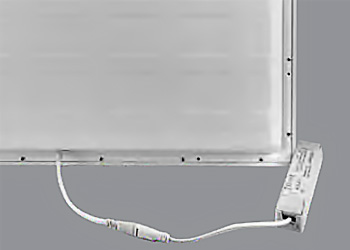

Function optional | ![]() |

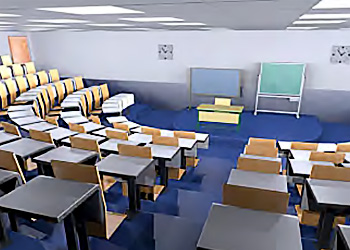

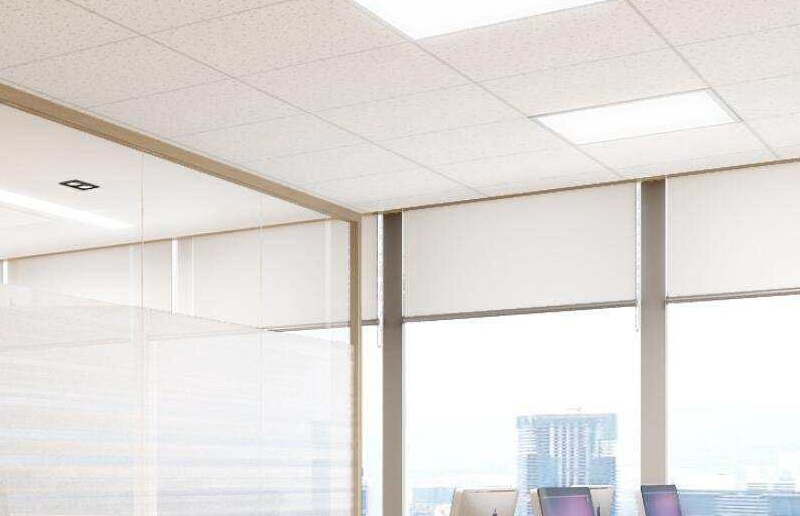

Widely used in different situations |
