| Model No. | LG15D-06-10/20 | LG15D-12-20/40 | LG15D-15-30/60 | LG15D-18-40/75 |
| Dimensions(mm) | 600*63.5*65 | 1200*63.5*65 | 1500*63.5*65 | 1800*63.5*65 |
| Power | 10/20W | 20/40W | 30/60W | 40/75W |
| Voltage | AC220-240V | |||
| CCT | 2700K/3000K/4000K/5000K/6500K | |||
| Luminous Efficiency | 120/130/150lm/W | |||
| Luminous Flux 120 | 1200/2400lm | 2400/4800lm | 3600/7200lm | 4800/9000lm |
| Luminous Flux 130 | 1300/2600lm | 2600/5200lm | 3900/7800lm | 5200/9750lm |
| Luminous Flux 150 | 1500/3000lm | 3000/6000lm | 4500/8000lm | 6000/11250lm |
| DF | >0.9 | |||
| CRI | >80 | |||
| Beam Angle | 120° | |||
| IP Grade Protection | IP20 | |||
![]() |

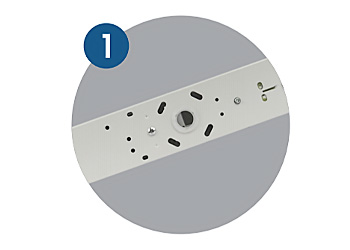

Cable entry in the middle and both ends |
![]() |

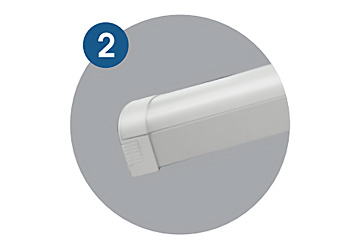

Slim body, easy to carry |
![]() |

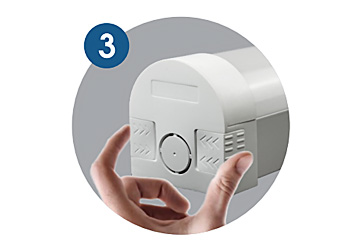

Easy open by slide switch | ![]() |

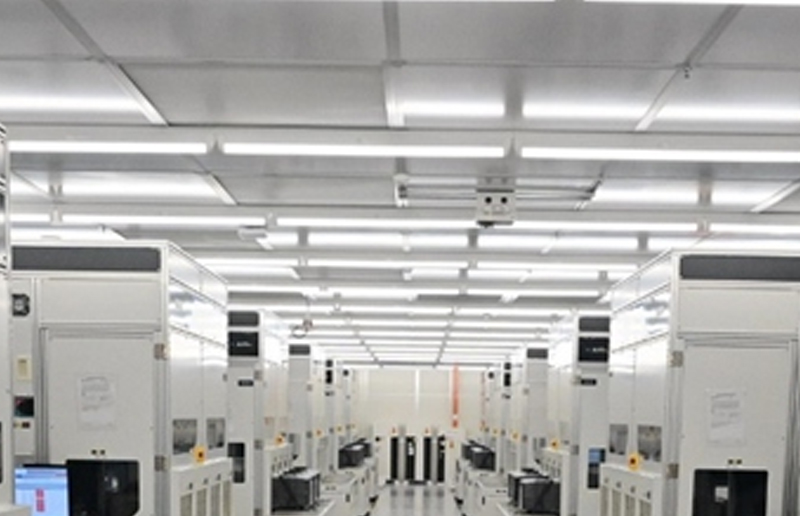

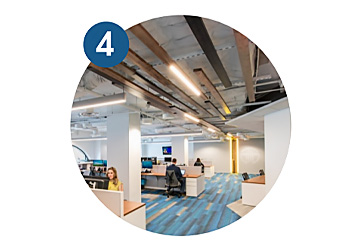

Widely used in different situations |
