| Model No. | LG07Q-06 | LG07Q-12 | LG07Q-15 |
| Dimensions(mm) | 600*79*68 | 1200*79*68 | 1500*79*68 |
| Power | 9/18W | 20/40W | 25/50W |
| Voltage | AC220-240V | ||
| CCT | 2700K/3000/4000/5000K/6500K | ||
| Luminous Efficiency | 120/150/200lm/W | ||
| Luminous Flux 120 | 1080/2160lm | 2400/4800lm | 3000/6000lm |
| Luminous Flux 150 | 1350/2700lm | 3000/6000lm | 3750/7500lm |
| Power@200lm | 17W | 32W | 44W |
| Luminous Flux 200 | 3400m | 6400lm | 8800lm |
| DF | >0.9 | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| IP Grade Protection | IP65/IP66 | ||
![]() |

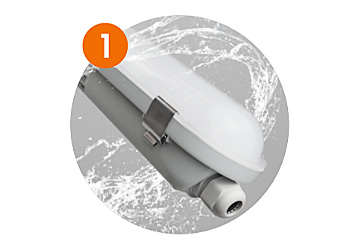

Ip65 Grade Protection | ![]() |

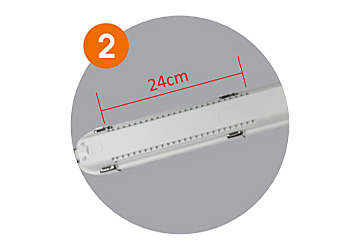

Extra-long installation distance |
![]() |

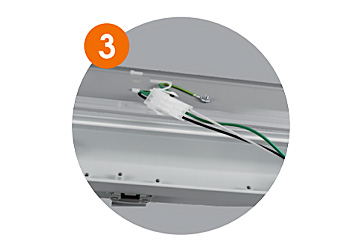

The iron plate can be separated from the driver by the male and female connector, ensuring safety in transit | ![]() |

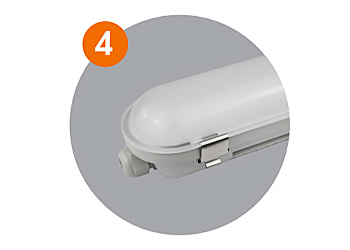

Clips design |
