| Model No. | LG05C-06S/06 | LG05C-12S/12 | LG05C-15S/15 | LG05C-18S/18 |
| Dimensions(mm) | 600*38*46/600* 78*46 | 1200*38*46/ 1200*78*46 | 1500*38*46/ 1500*78*46 | 1800*38*46/ 1800*78*46 |
| Power | 8/16W | 16/30W | 18/36W | 24/48W |
| Voltage | AC220-240V | |||
| CCT | 2700K/3000K/4000K/5000K/6500K | |||
| Luminous Efficiency | 110-135Im/W | |||
| Luminous Flux 120 | 920/1800lm | 1920/3300lm | 2400/4100lm | 3250/5600lm |
| DF | >0.7/0.9 | |||
| CRI | >80 | |||
| Beam Angle | 120° | |||
| IP Grade Protection | IP20 | |||
![]() |

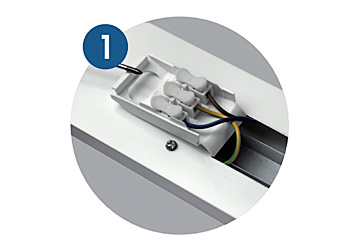

Easy to connect, back side to connect |
![]() |

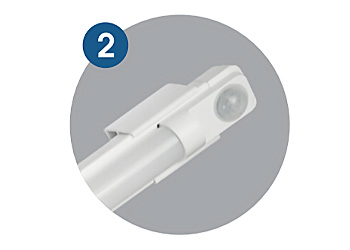

With the PIR Sensor function |
![]() |

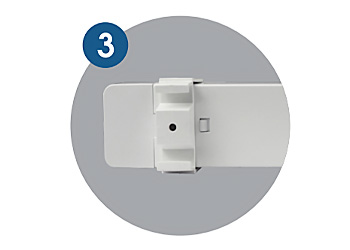

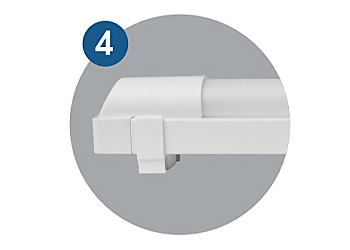

Easy installation and beautiful appearance |
![]() |

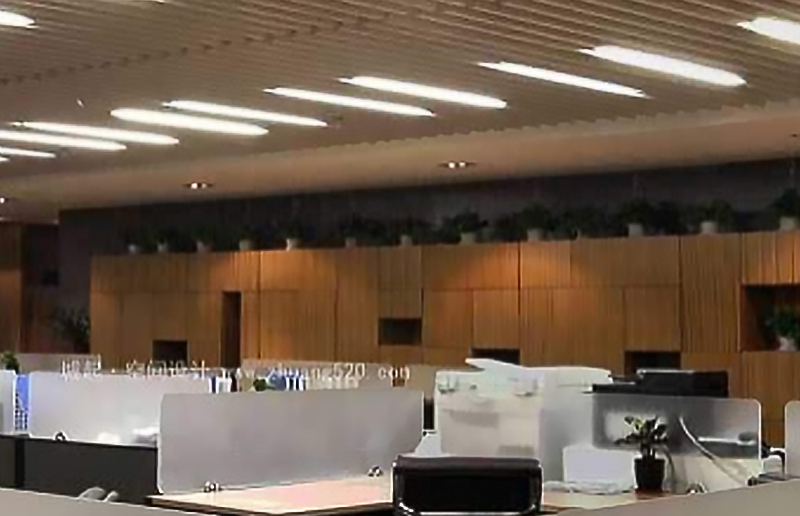

Batten for supermarket sales |
