| Model No. | LG09O-300-12 | LG09O-300-16 | ||||
| Dimensions(mm) | Φ340*93 | |||||
| Power | 12W | 16W | ||||
| Voltage | AC220-240V | |||||
| CCT | 2700K/3000K/4000K/5000K/6500K | |||||
| Luminous Efficiency | 100lm/W | |||||
| Luminous Flux 100 | 1200lm | 1600lm | ||||
| DF | >0.7/0.9 | |||||
| CRI | >80 | |||||
| Beam Angle | 120° | |||||
| IP Grade Protection | IP65 | |||||
![]() |

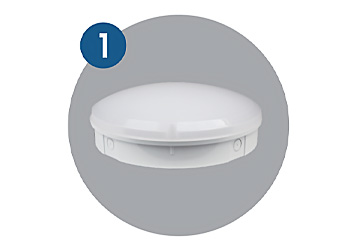

Four outlet holes on the side, Customers can connect in all directions |
![]() |

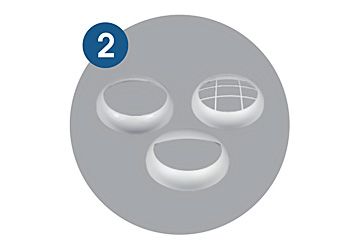

Three kinds of decorative frames can be replaced with changeable shapes |
![]() |

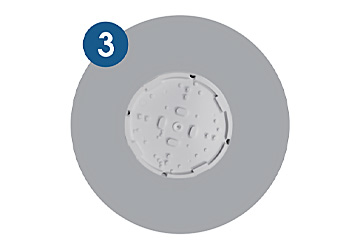

The use of anti-theft sCrews between the lampshade and the bottom of the lamp makes it more convenient for customers to install | ![]() |

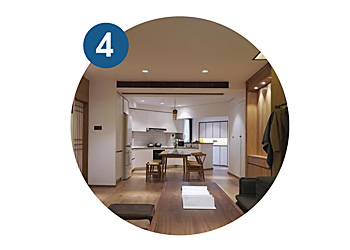

Intelligent functions available for comfortable and modern life |
