| Model No. | LG05V-06-10/20 | LG05V-12-20/40 | LG05V-15-30/60 | LGO5V-18-40/80 |
| Dimensions(mm) | 621*65*57.5 | 1200*65*57.5 | 1500*65*57.5 | 1800*65*57.5 |
| Power | 10/20W | 20/40W | 30/60W | 40/80W |
| Voltage | AC220-240V | |||
| CCT | 2700K/3000K/4000K/5000K/6500K | |||
| Luminous Efficiency | 100lm/W | |||
| Luminous Flux 100 | 1000/2000lm | 2000/4000lm | 3000/6000lm | 4000/8000lm |
| DF | >0.9 | |||
| CRI | >80 | |||
| Beam Angle | 120° | |||
| IP Grade Protection | IP20 | |||
![]() |

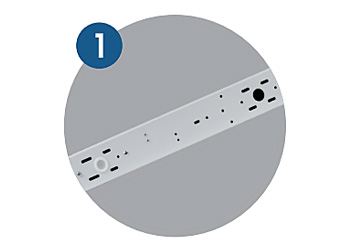

Engineering bracket batten | ![]() |

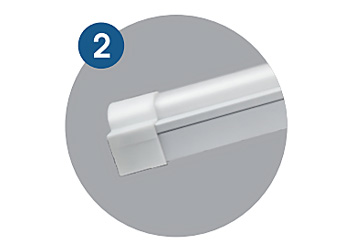

Slender design. with a luminous surface similar to that of an LED tube |
![]() |

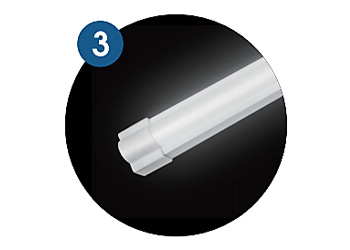

With a luminous surface similar to that of an LED tube | ![]() |

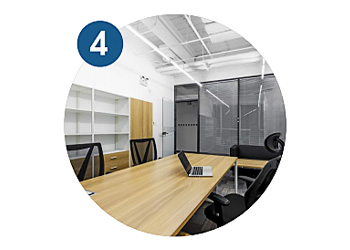

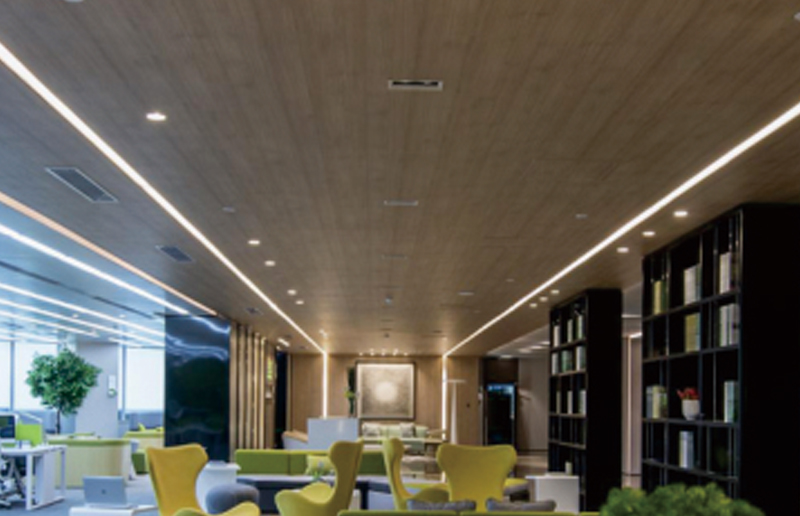

Widely used in different situations |
