Model No. | LG05R-H-06 | LG05R-H-12 | LG05R-H-15 |
Dimensions(mm) | 700*84*75 | 1170*84*75 | 1470*84*75 |
Power | 12/20W | 24/36W | 48/50W |
Voltage | AC220-240V | ||
CCT | 2700K/3000K/4000K/5000K/6500K | ||
Luminous Efficiency | 135lm/W | ||
Luminous Flux 120 | 1600/2700lm | 3240/4860lm | 6480/6750lm |
DF | >0.9 | ||
CRI | >80 | ||
Beam Angle | 120° | ||
IP Grade Protection | IP20 |
![]() |

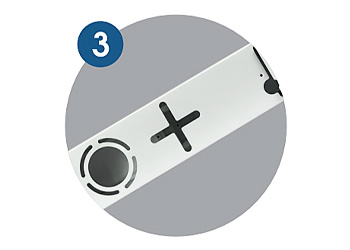

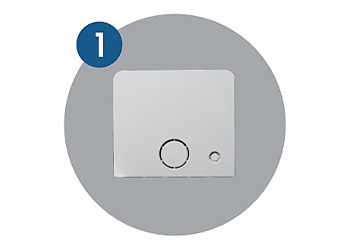

Cable entry in the middle and both ends | ![]() |

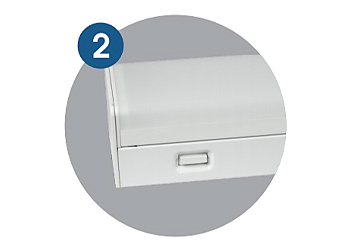

Easy to open |
![]() |
Engineering bracket batten | ![]() |

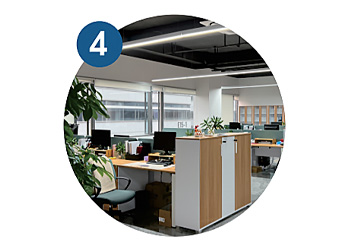

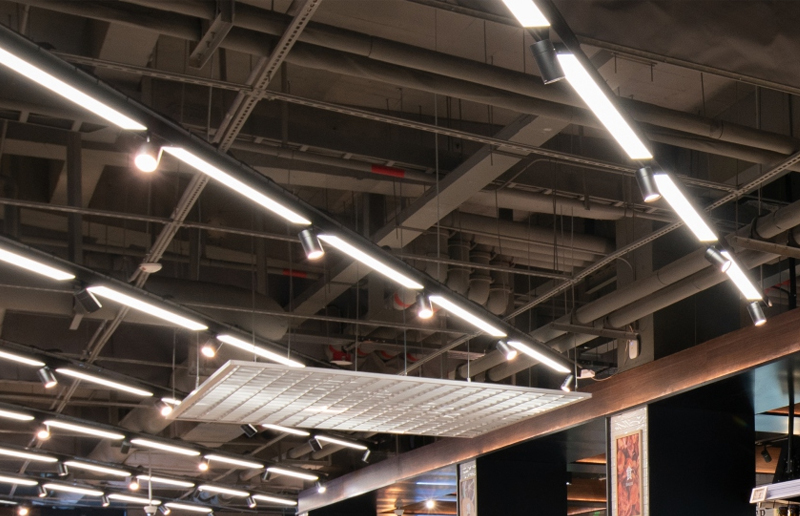

Widely used in different situations |
