| Model NO. | Power(Max.w) | lout(mA) | Vout(V-DC) | Type.Eff. | Ripple Current | DIP Switch(3 level Current) | DIM.(L*W*Hmm) |

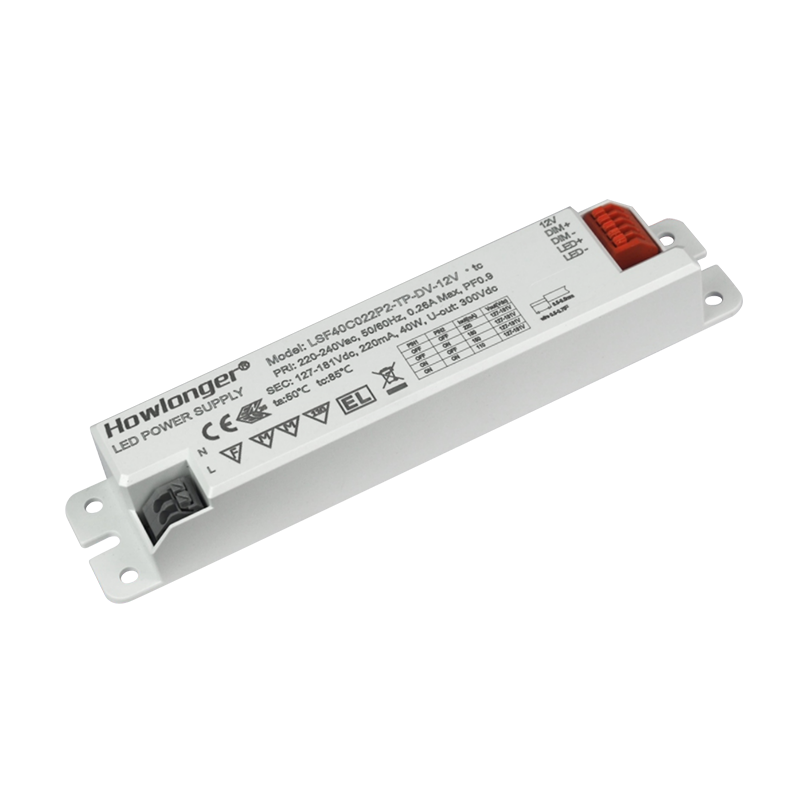

| LSF15CxxxP2-TP-DV-12V | 15W | 80-200 | 75- 188 | 87% | <5% | 50-100% | 163*33.5*23 |
| LSF25CxxxP2-TP-DV-12V | 25W | 130-350 | 70-192 | 90% | <5% | 50-100% | 163*33.5*23 |
| LSF40CxxxP2-TP-DV-12V | 40W | 200-360 | 111-200 | 92% | <5% | 50-100% | 163*33.5*23 |
| LSF50CxxxP2-TP-DV-12V | 50W | 240-360 | 139-208 | 92% | <5% | 50-100% | 197.5*33.5*23 |
| LSF60CxxxP2-TP-DV-12V | 60W | 300-500 | 120-200 | 93% | <5% | 50-100% | 197.5*33.5*23 |
| LSF70CxxxP2-TP-DV-12V | 70W | 350-500 | 140-200 | 93% | <5% | 50-100% | 197.5*33.5*23 |
