Model No. | LG05BN-03 | LG05BN-06 | LG05BN-09 | LG05BN-12 | LG05BN-15 |
Dimensions(mm) | 313*28*36 | 573*28*36 | 873*28*36 | 1173*28*36 | 1473*28*36 |
Power | 4W | 8W | 12W | 14/20W | 25W |
Voltage | AC220-240V | ||||
CCT | 2700K/3000K/4000K/5000K/6500K | ||||
Luminous Efficiency | 100lm/W | ||||
Luminous Flux 100 | 400lm | 800lm | 1200lm | 1400/2000lm | 2500lm |
DF | >0.7 | ||||
CRI | >80 | ||||
Beam Angle | 150° | ||||
IP Grade Protection | IP20 |
![]() |

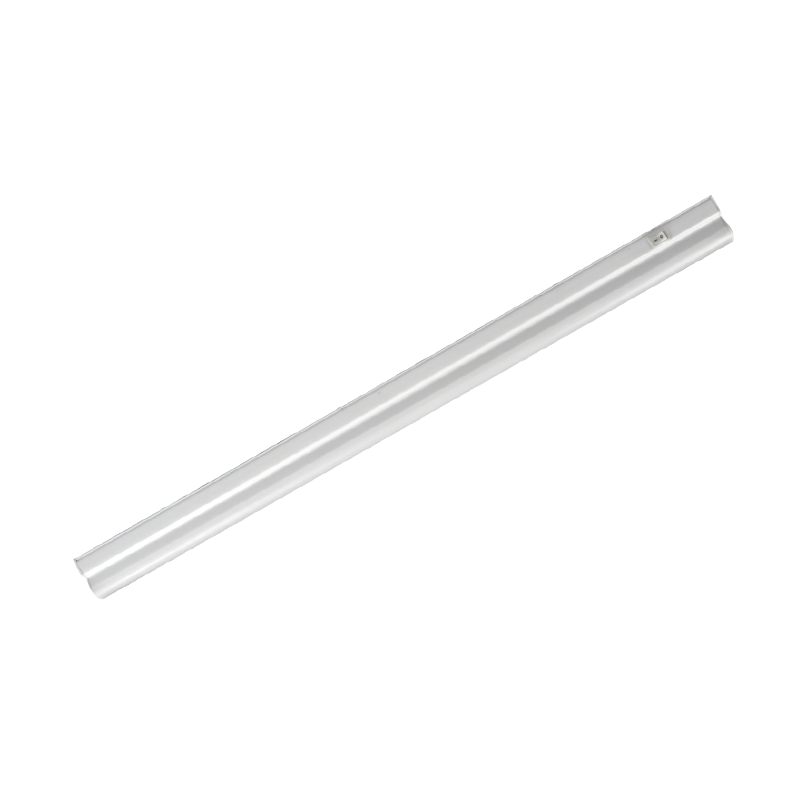

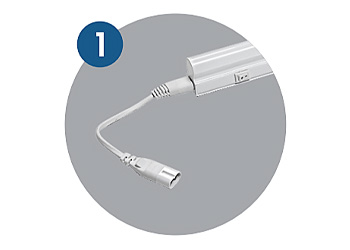

Slim body, easy to carry and connect | ![]() |

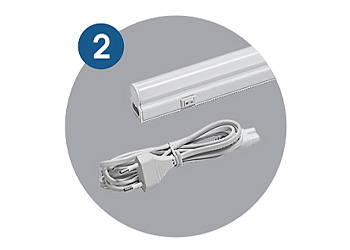

With the switch to control ON/OFF |
![]() |
Easy to install | ![]() |

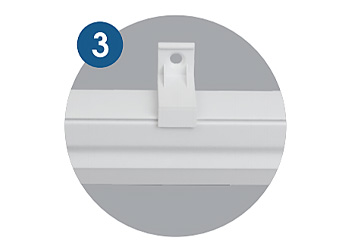

Available in 90° and 180° mounting versions |
