Model No. | LG12A-06-20 | LG12A-12-40 | LG12A-15-30 | LG12A-15-60 | LG12A-15-70 |
Dimensions(mm) | 600*63.5*65 | 1200*63.5*65 | 1500*63.5*65 | 1500*63.5*65 | 1500*63.5*65 |
Power | 10/20W | 20/40W | 15/30W | 30/60W | 35/70W |
Voltage | AC220-240V | ||||
CCT | 2700K/3000K/4000K/5000K/6000K | ||||
Luminous Efficiency | 120lm/W | ||||
Luminous Flux 120 | 2400lm | 4800lm | 3600lm | 7200lm | 8400lm |
DF | >0.9 | ||||
CRI | >80 | ||||
Beam Angle | 120° | ||||
IP Grade Protection | IP20 |
![]() |

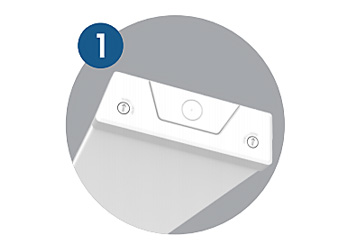

High strength, good heat dissipation, strong and reliable | ![]() |

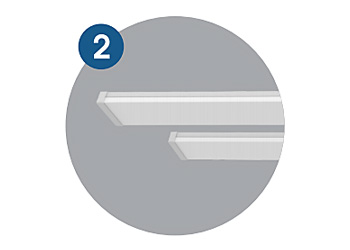

Excellent anti-glare effect UGR19 |
![]() |

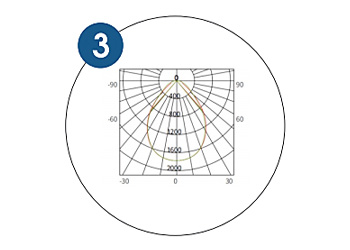

Light distribution curve | ![]() |

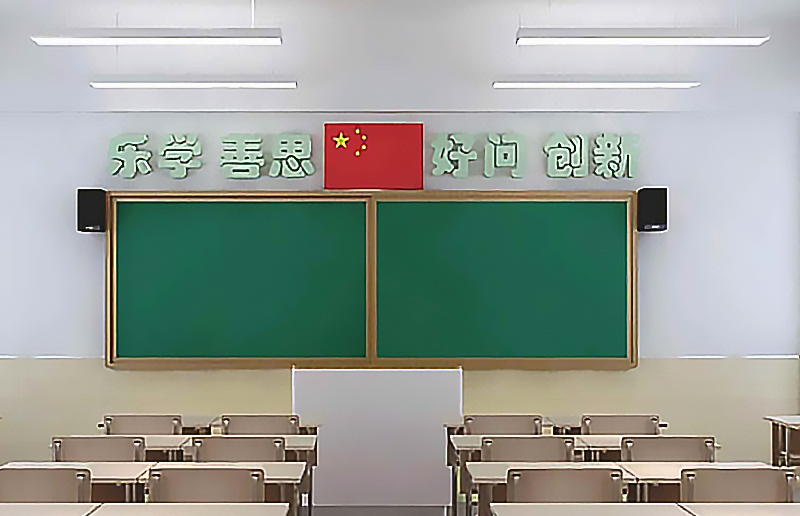

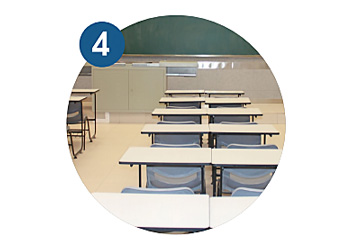

Widely used in different situations |
