| Model No. | LG15G-03-04 | LG15G-06-08/10 | LG15G-09-15 | LG15G-12-14/18/20 | LG15G-15-22/24 |
| Dimensions(mm) | 245*22.2*29.8 | 545*22.2*29.8 | 845*22.2*29.8 | 1145*22.2*29.8 | 1445*22.2*29.8 |
| Power | 4W | 8/10W | 15W | 14/18/20W | 22/24W |
| Voltage | AC220-240V | ||||
| CCT | 2700K/3000K/4000K/5000K/6500K | ||||
| Luminous Efficiency | 100lm/W | ||||
| Luminous Flux | 400lm | 800/1000lm | 1500lm | 1400/1800/2000lm | 2200/2400lm |
| DF | >0.5 | ||||
| CRI | >80 | ||||
| Beam Angle | 120° | ||||
| IP Grade Protection | IP40 | ||||
![]() |

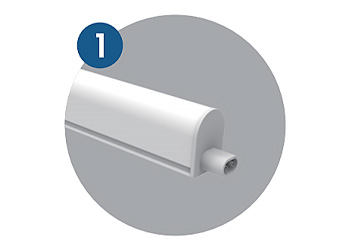

Beautifully designed | ![]() |

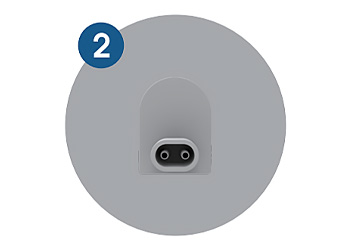

Quick connections |
![]() |

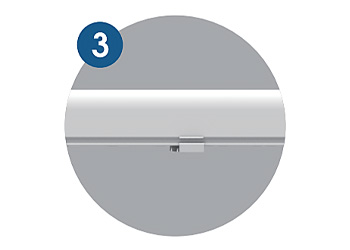

Clips design | ![]() |

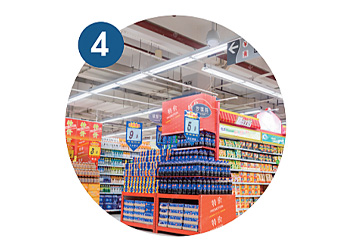

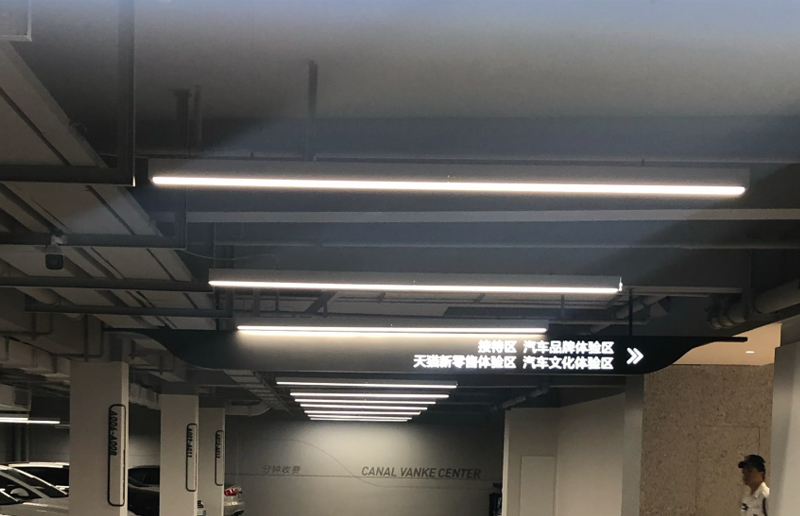

Widely used in different situations |
