| Model No. | LG08H-A-06 | LG08H-A-12 | LG08H-A-15 |
| Dimensions(mm) | 650* φ 84.5 | 1250* φ 84.5 | 1550* φ 84.5 |
| Power | 20W | 30/40W | 50/60W |
| Voltage | AC220-240V | ||
| CCT | 2700K/ 3000/ 4000/5000K/6500K | ||
| Luminous Efficiency | 100lm/W; 130lm/W | ||
| Luminous Flux 100 | 2000lm | 3000/4000lm | 5000/6000lm |
| Luminous Flux 130 | 2600lm | 3900/5200lm | 6500/7800lm |
| DF | >0.9 | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| IP Grade Protection | Ip65 | ||
![]()  |

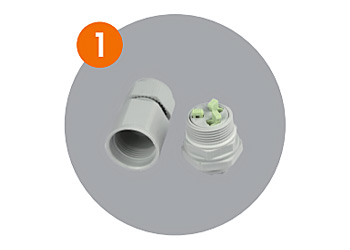

Fast cable gland | ![]()  |

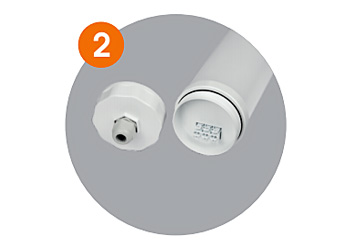

Easy to connect PC material |
![]()  |

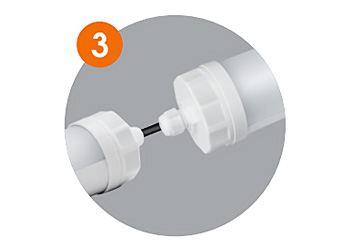

Easy to connect with one by one | ![]()  |

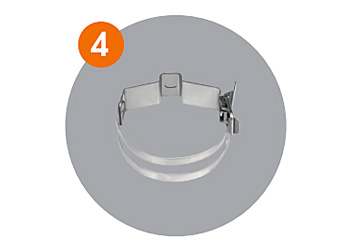

Accessories |
