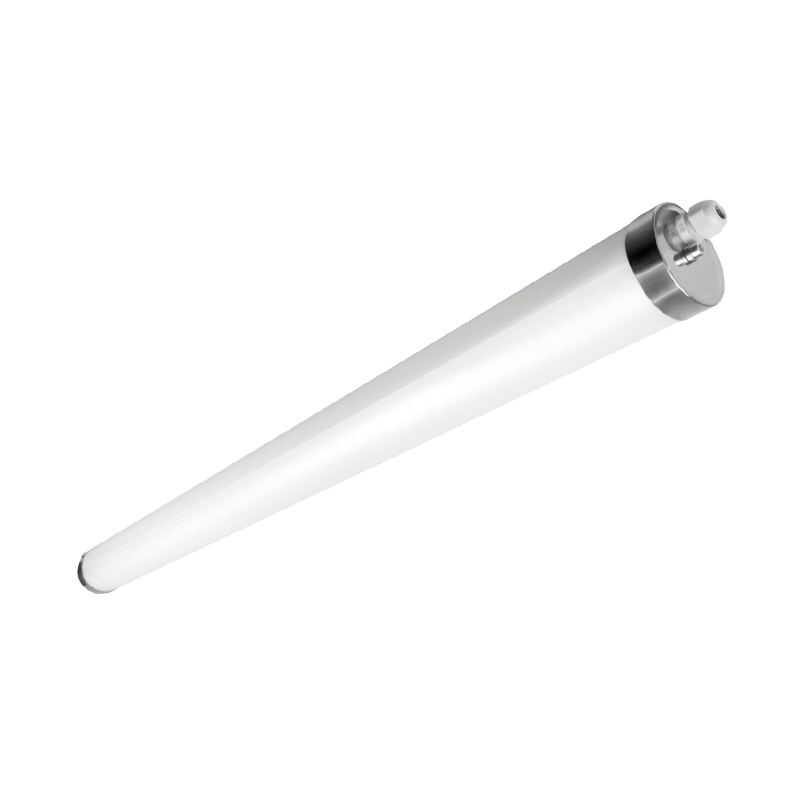

| Model No. | LG08H-B-06 | LG08H-B-12 | LG08H-B-15 |
| Dimensions(mm) | 705.5* φ 82.5 | 1305.5* φ82.5 | 1605.5* φ 82.5 |
| Power | 20/30W | 30/40/45W | 50/60/75W |
| Voltage | AC220-240V | ||
| CCT | 2700K/3000/4000/5000K/6500K | ||
| Luminous Efficiency | 110lm/W; 130lm/W | ||
| Luminous Flux 110 | 2200/3300lm | 3300/4400/4950lm | 5500/6600/8250lm |
| Luminous Flux 130 | 2600/3900lm | 3900/5200/5850lm | 6500/7800/9750lm |
| DF | >0.9 | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| IP Grade Protection | Ip65 | ||
![]() |

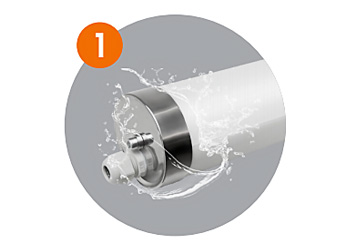

Metal locking clips version, IP65 | ![]() |

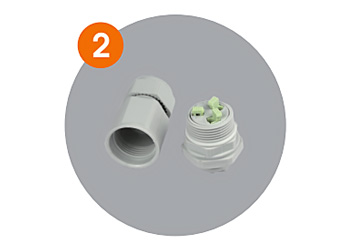

Fast cable gland |
![]() |

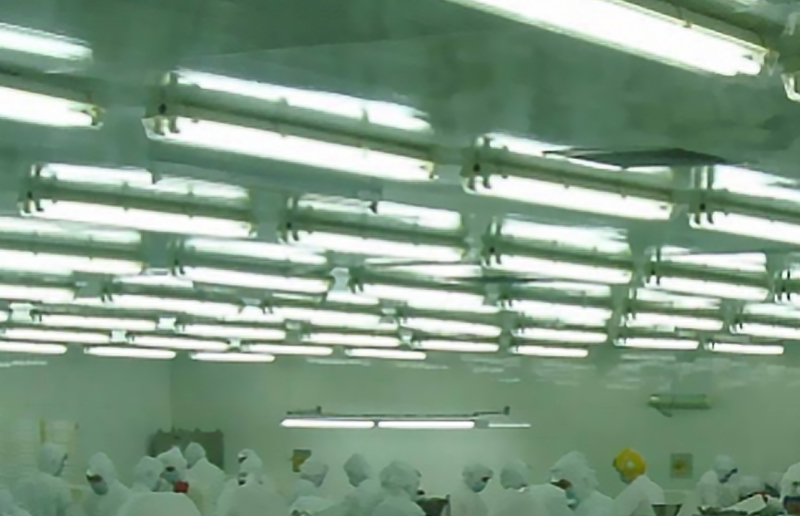

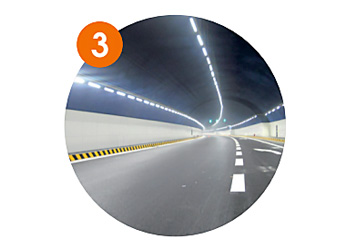

Widely used in different situations | ![]() |

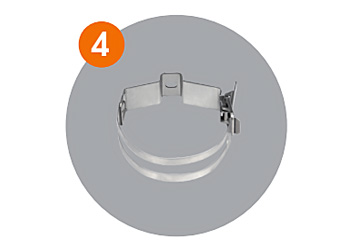

Accessories |
