| Model No. | LG08S-06 | LG08S-12 | LG08S-15 |
| Dimensions(mm) | 605*47.5*59.5 | 1105*47.5*59.5 | 1405*47.5*59.5 |
| Power | 18W | 36W | 45W |
| Voltage | AC220-240V | ||
| CCT | 2700K/3000/4000/5000K/6500K | ||
| Luminous Efficiency | 120lm/W | ||
| Luminous Flux | 2160lm | 4320lm | 5400lm |
| DF | >0.9 | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| IP Grade Protection | Ip65 | ||
![]()  |

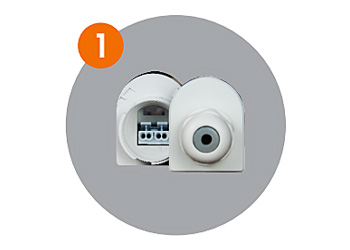

Fast cable gland and the power cord can choose  |
![]()  |

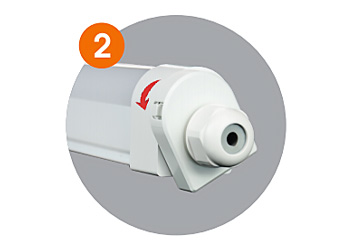

Product features can be linked by male and female  |
![]()  |

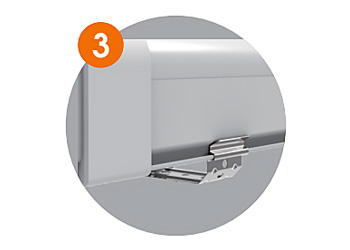

Easy installation | ![]()  |

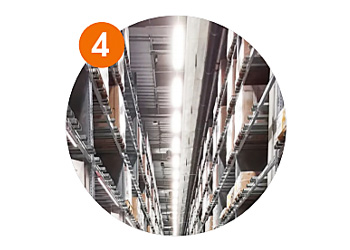

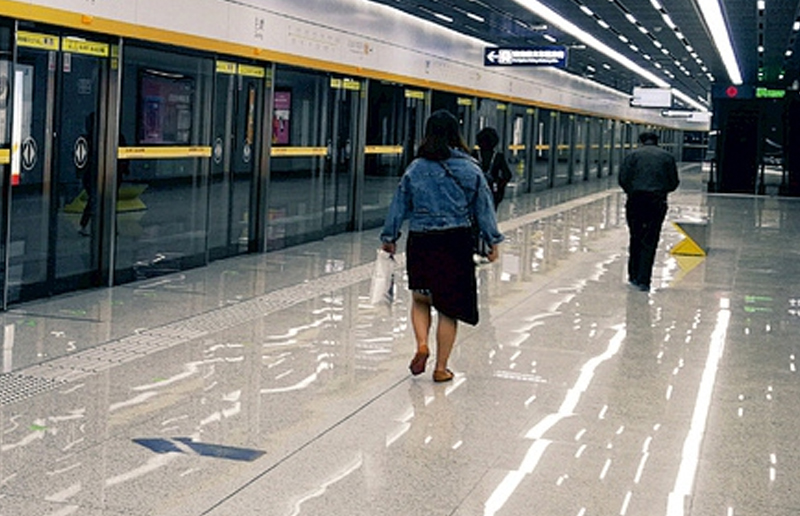

Widely used in different situations |
