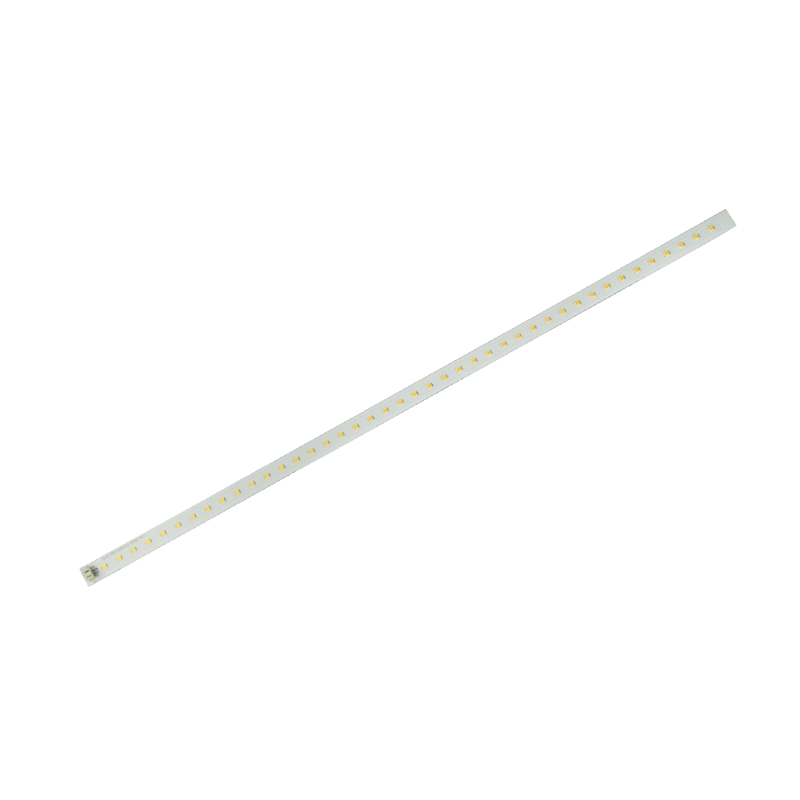

| Model No. | AL42 2835 508X14X1-1B42C-V0.1 | AL82-2835-1108X14X1-2B41C-V0.1 | AL108-2835-1408X 14X1-2B54C-V0.1 |
| Size(L*W*H(mm) | 508*14*1.0 | 508* 14*1.0 | 508*14*1.0 |
| Material PCB | Aluminum | ||
| PCB surface treatment | OSP | ||
| Package type LED | 2835 0.5W 3V 150mA | ||
| LED Quantity | 42 | 82 | 108 |
| LEDs in series | 42 | 41 | 54 |
| LED lines parallel | 1 | 2 | 2 |
| Beam characteristic | 120° | ||
| Ambient temperature range | -20...+65°C | ||
| Tp rated | 65°C | ||
| TC | 85°C | ||
| VF(Vdc) | 126 | 123 | 162 |
| lrated(mA) | 130 | 260 | 260 |
| Imax(mA) | 150 | 300 | 300 |
| Max.DC forward current(mA) | 150 | 300 | 300 |
| Risk grop(EN 62471:2008) | RG0 | ||
| CTI OF the printed circuit board | ≥600 | ||
| Classification acc. to IEC 62031 | Built-in | ||
| Type of protection | IP00 | ||
| Photometric code | 3000K/4000K/6500K | ||
| Typ.luminours flux(25"C) | 2250lm±10% | 4400lm±10% | 5800lm±10% |
| Max.forward voltage(25"C)Vdc | 135 | 130 | 175 |
| Ra | ≥80 | ||
| R9 | >0 | ||
| SDCM | <6 | ||
| Lifetime | 5000hrs | ||
| Standards | EN 62031, EN 62471, EN 61347-1 | ||
