| Model No. | LG06P-06 | LG06P-12 | LG06P-15 | LG06P-18 |
| Dimensions(mm) | 700*53*35 | 1230*53*35 | 1510*53*35 | 1810*53*35 |
| Power | 10/18W | 18/36W | 24/45W | 60W |
| Voltage | AC220-240V | |||
| CCT | 2700K/3000/4000/5000K/ 6500K | |||
| Luminous Efficiency | 100lm/W | |||
| Luminous Flux 100 | 1000/1800lm | 1800/3600lm | 2400/4500lm | 6000lm |
| DF | >0.7/>0.9 | |||
| CRI | >80 | |||
| Beam Angle | 120° | |||
| IP Grade Protection | lp65 | |||
![]() |

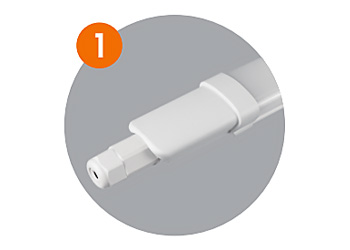

It can be used through wiring and a PIR sensor | ![]() |

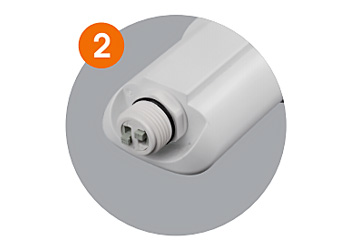

Fast cable gland and power cord can choose |
![]() |

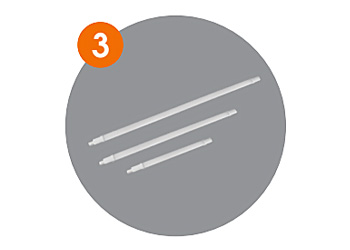

Several sizes optional | ![]() |

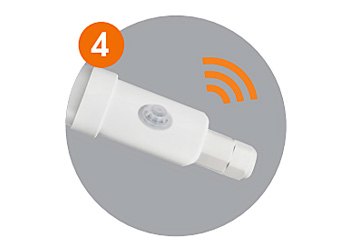

With PIR sensor |
