| Model NO. | LG11G-06-18 | LG11G-12-36 | LG11G-15-45 |
| Dimensions(mm) | 545*63*28 | 1145*63*28 | 1445*63*28 |
| Power | 18W | 36W | 45W |
| Voltage | AC220-240V | ||
| CCT | 2700K/3000/4000/5000K/6500K | ||
| Luminous Efficiency | 100/120lm/W | ||
| Luminous Flux 100 | 1800lm | 3600lm | 4500lm |
| Luminous Flux 120 | 2160lm | 4320lm | 5400lm |
| DF | >0.5(18W), >0.9 | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| IP Grade Protection | IP54 | ||
![]() |
New construction, the PCB attached to the cover, easy to install, and do the wiring for the external |
![]() |
Uniform and beautiful light emission |
![]() |

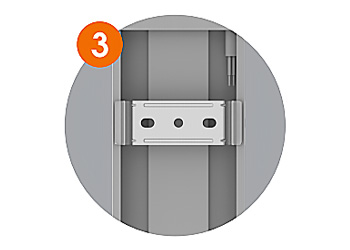

Clips design | ![]() |
Widely used in different situations |
