| Model No. | Power(Max.w) | lout(mA) | Vout(V-DC) | Type. eff. | Ripple Current | DIP Switch(3 level Current) | DIM.(L*W *Hmm) |
| LGN21C050D2 | 21W | 500 | 24-42 | 88% | <5% | 50-100% | 100*38*25 |
| LGN23C055D2 | 23W | 550 | 24-42 | 88% | <5% | 50-100% | 100*38*25 |
| LGN26C060D2 | 26W | 600 | 24-42 | 88% | <5% | 50-100% | 100*38*25 |
| LGN28C065D2 | 28W | 650 | 24-42 | 88% | <5% | 50-100% | 100*38*25 |
| LGN30C070D2 | 30W | 700 | 24-42 | 91% | <5% | 50-100% | 100*38*25 |
| LGN32C075D2 | 32W | 750 | 24-42 | 91% | <5% | 50-100% | 100*38*25 |
| LGN34C080D2 | 34W | 800 | 24-42 | 91% | <5% | 50-100% | 100*38*25 |
| LGN36C085D2 | 36W | 850 | 24-42 | 91% | <5% | 50-100% | 100*38*25 |
| LGN38C090D2 | 38W | 900 | 24-42 | 91% | <5% | 50-100% | 100*38*25 |
| LGN40C095D2 | 40W | 9500 | 24-42 | 91% | <5% | 50-100% | 100*38*25 |
| LGN40C100D2 | 40W | 1000 | 24-40 | 91% | <5% | 50-100% | 100*38*25 |

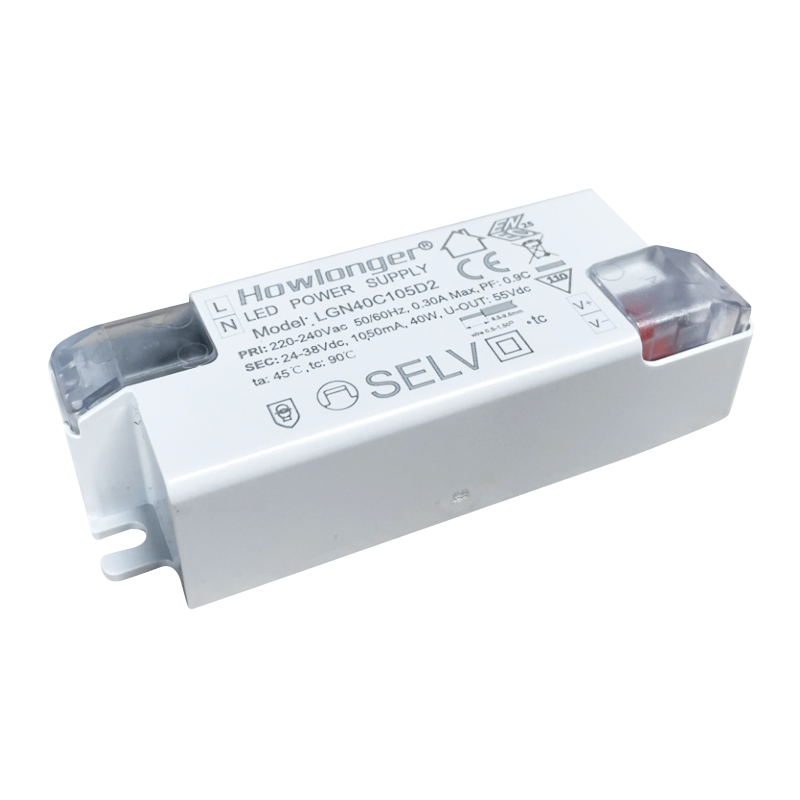

| LGN40C105D2 | 40W | 1050 | 24-38 | 91% | <5% | 50-100% | 100*38*25 |
